RED E CHARGE

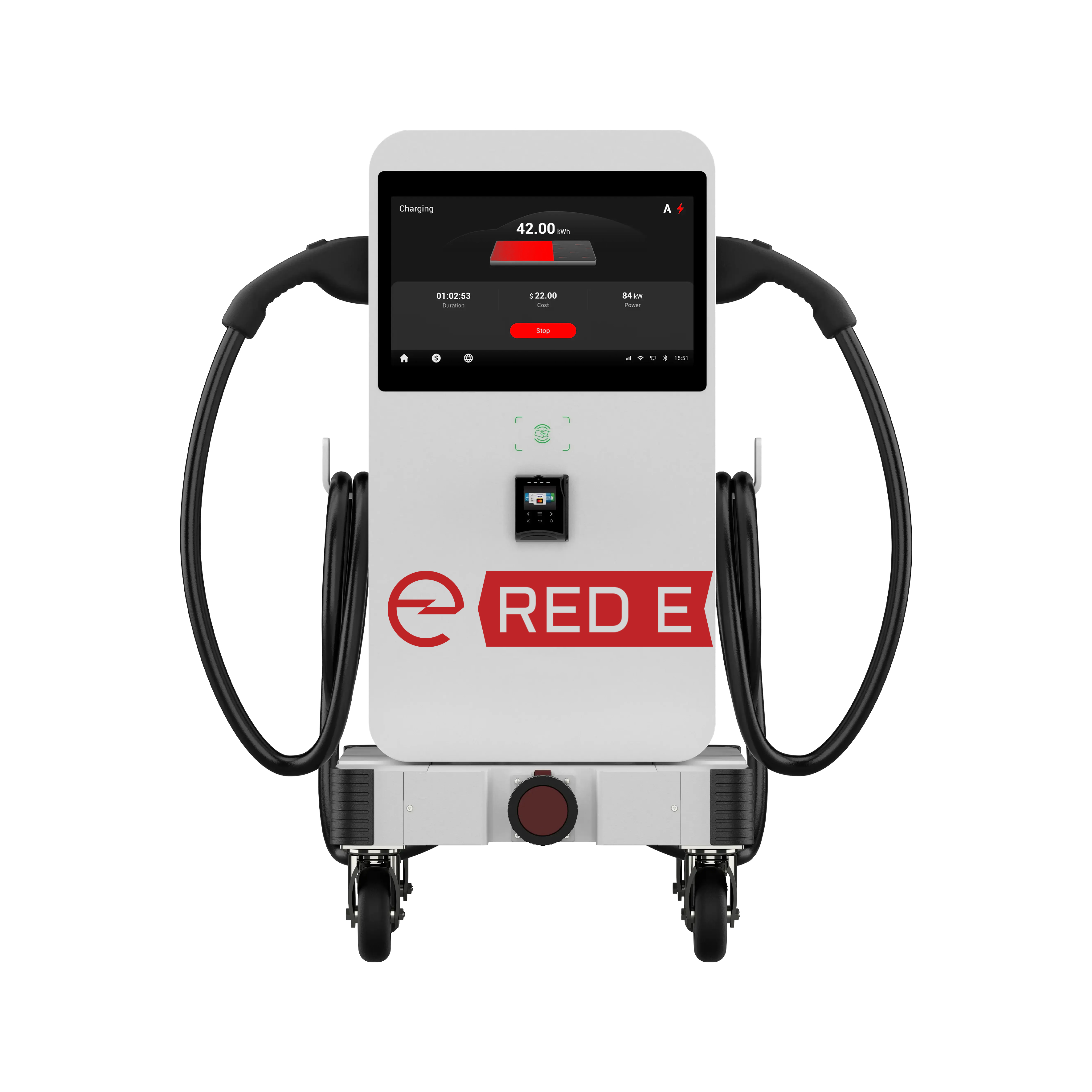

Stellar 40kW DC Trolley
Compact Mode 4 DC fast charging in a trolley or pedestal form factor, built for commercial and fleet sites.
- DC fast charging, 40kW output (Mode 4: CCS1)
- Output 150-950V, max 133A
- Connectors: 2x CCS1, or CCS1 + CHAdeMO
- 21.5 inch LCD touchscreen, peak efficiency 96% or higher
- ISO 15118 Plug & Charge; OCPP 1.6J (upgradable to 2.0.1)
- 4G, Wi-Fi, Ethernet; APP, RFID, optional credit card
- NEMA 3S enclosure, wall or pedestal mount
- 24-month warranty, extensions available
Frequently asked questions
Is the Stellar 40kW available for businesses?
Yes. Request a quote and the Red E team will help you select and install the right hardware for your site.
What support comes with Red E chargers?
Red E provides network management, monitoring, and driver support across the United States.
